indoor · P0.37–P0.49
Interactive Display Boards for Classrooms & Meeting Rooms
A 4K touchscreen, a whiteboard and a computer in one wall-mounted panel. Teachers write on it, annotate over anything, and record the lesson; meeting rooms share screens to it wirelessly. Supplied and installed, with the mount and training included.
- Manufacturer warranty
- GST invoice
- Pan-India delivery
- On-site service in Karnataka
- Transparent, published pricing
An interactive display board — the trade calls it an interactive flat panel — replaces the projector, the whiteboard and the classroom PC in one panel. It is the same purchase decision whether the room is a classroom, a coaching hall or a boardroom: size for the room, touch that keeps up with writing, and software the people in the room will actually use.
The two ranges we supply
We quote against two lines: LG CreateBoard, which reaches down to 55 inches and adds remote fleet management and the security controls a shared room needs, and LOGIC INFINITY, an Indian-market line with the loudest built-in sound of the two and a specified Core i5 Windows module. Both are 4K on every size, both take up to 40 touch points, and both accept a slot-in OPS PC, so the choice is about the room and the IT department rather than about picture quality.
| LG CreateBoard TR3DK | LOGIC INFINITY AX | |
|---|---|---|
| Sizes | 55", 65", 75", 86" | 65", 75", 86" |
| Resolution | 3,840 × 2,160 (4K UHD) | 3,840 × 2,160 (4K UHD) |
| Brightness | 390 nit typical, 440 max (measured without glass) | 350 cd/m² typical, 300 minimum (measured through the glass) |
| Touch points | Up to 40 — 40 on Windows, 32 on Android, 10 in the writing app | 40, infrared, ±1.5 mm accuracy |
| Built-in system | LG CreateBoard software — templates, Drive and OneDrive import/export, QR sign-in | Android 11, quad-core, 4 GB RAM, 32 GB storage |
| Windows | OPS slot (module quoted separately) | OPS slot — module specified as 11th-gen Core i5, 8 GB, 256 GB SSD |
| Screen sharing | CreateBoard Share — up to 9 screens at once, app or browser on the same network | Over the network; Wi-Fi through an optional wireless module |
| USB-C | Yes — DisplayPort video and up to 65 W laptop charging on one cable | Yes — USB 3.1 Type-C on the front edge |
| Sound | Front-firing speakers | 2 × 16 W front-firing speakers |
| Fleet management | LG ConnectedCare DMS — monitoring, scheduling, alerts (sold separately, availability varies by region) | Not offered on this range |
| Room security | Secure mode, screen lock, USB lock, scheduled file deletion | Not published for this range |
Watch one being used
LOGIC INFINITY AX Series
- Writing latency under 40 ms with a dual-tip stylus that draws a different colour at each end
- 3 mm anti-glare glass, zero-bonded — no air gap at the centre, 0.8 mm at the edge — and a bezel under 15 mm
- Android 11 on a quad-core Cortex-A55 with Mali-G52 MP2 graphics, 4 GB RAM and 32 GB storage
- Ports: 3 × HDMI in, VGA, USB-C, 4 × USB 3.0, USB 2.0, 2 × touch out, RJ45 in and out, RS232, audio in and out, SPDIF
- In the box: remote, two pens, power cord, HDMI cable and USB touch cable
- Panel figures: ADS panel, D-LED backlight, 8 ms response, 60 Hz, 10-bit colour (1.07 billion), 1200:1 contrast, 178° viewing angle, rated ≥30,000 hours
| LT-IR65AX | LT-IR75AX | LT-IR86AX | |
|---|---|---|---|
| Screen size | 65" | 75" | 86" |
| Display area | 1,428 × 804 mm | 1,650 × 928 mm | 1,895 × 1,066 mm |
| Pixel pitch | 0.372 mm | 0.4296 mm | 0.4935 mm |
| Overall (W × H × D) | 1,488 × 897 × 87 mm | 1,709 × 1,020 × 88 mm | 1,957 × 1,160 × 100 mm |
| VESA mount | 600 × 400 | 800 × 400 | 800 × 600 |
| Weight | 34.95 kg | 47.30 kg | 58.55 kg |
The INFINITY AX Series panel — 65, 75 and 86 inch.Product image: LOGIC — INFINITY AX Series product catalogue

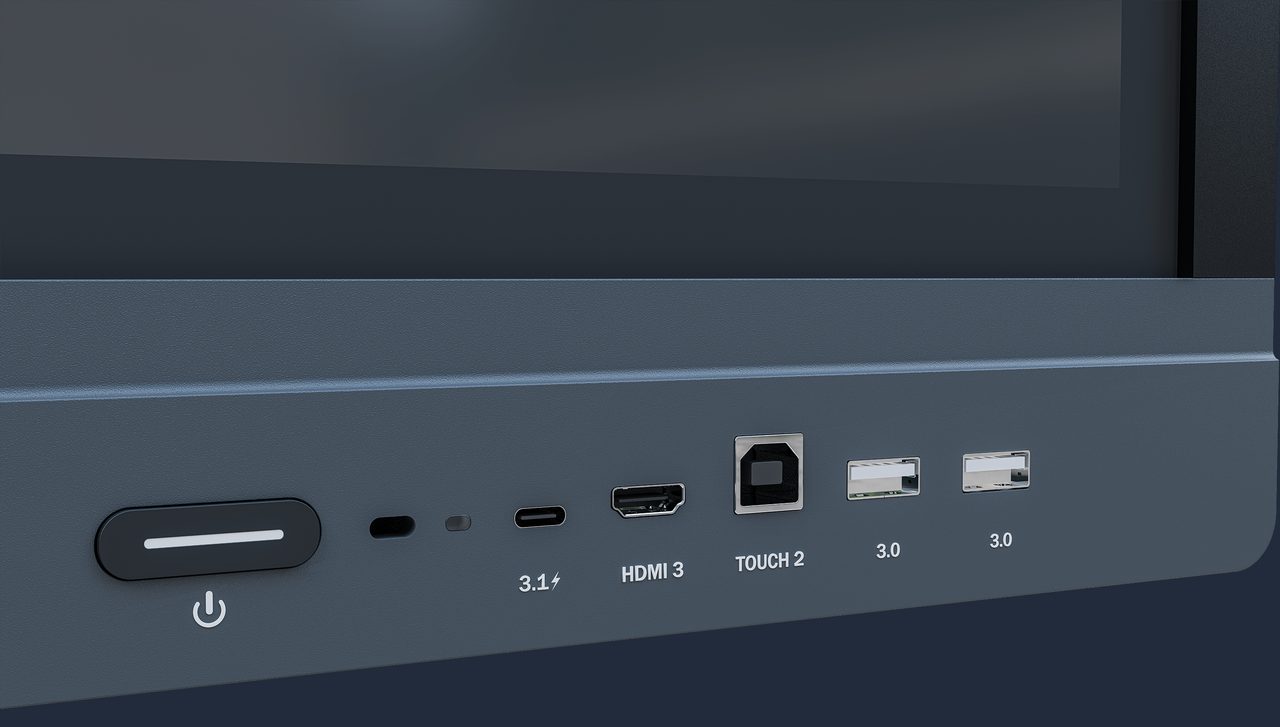

Front ports: USB-C, HDMI, touch-out and two USB 3.0 — reachable without going behind the board.Product image: LOGIC — INFINITY AX Series product catalogue

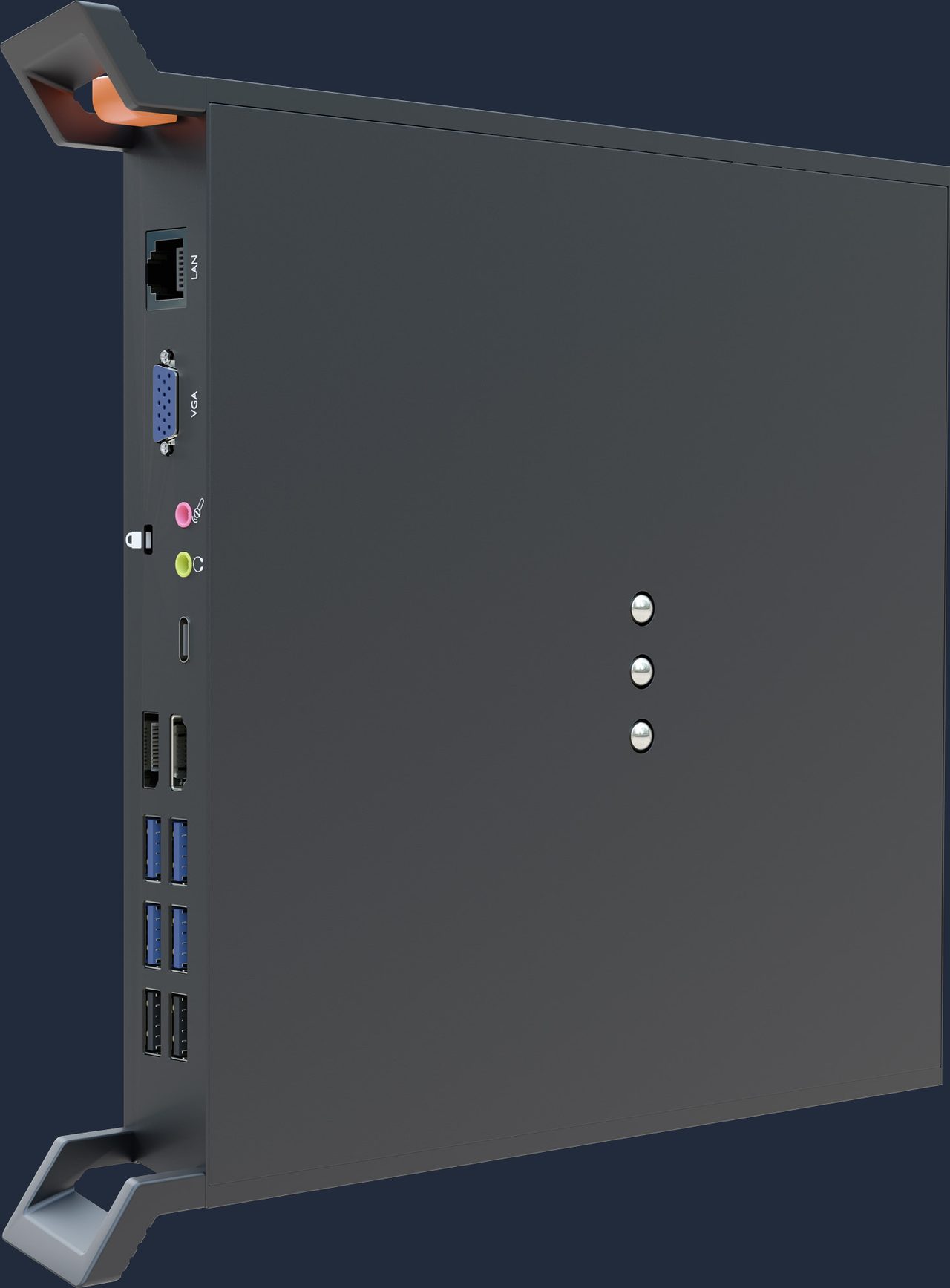

The optional OPS module — an Intel Core i5 Windows PC that slides into the back of the panel.Product image: LOGIC — INFINITY AX Series product catalogue
Writing on the panel: up to 40 touch points at once.Manufacturer visualization: LOGIC — INFINITY AX Series product catalogue
LG CreateBoard TR3DK Series
- The only range here with a 55-inch size, for huddle rooms and staff rooms where 65 inches will not fit
- CreateBoard Share puts up to nine screens on the board at once, from an app or a browser on the same network
- USB-C carries video and charges a laptop at up to 65 W over the same cable; Bluetooth for keyboard, mouse or speaker
- Teaching tools built in: rulers, tables, mind maps, sticky notes, and export straight to Google Drive or OneDrive
- QR sign-in, so a teacher reaches their own cloud account without typing a password on a shared screen
- Secure mode, screen lock, USB lock and scheduled file deletion — the controls an IT department asks about for a shared room
- LG ConnectedCare DMS can monitor and control a fleet remotely, with temperature and storage alerts (sold separately; availability varies by region)
| 55" | 65" | 75" | 86" | |
|---|---|---|---|---|
| Active area | 1,210 × 680 mm | 1,428 × 804 mm | 1,650 × 928 mm | 1,897 × 1,068 mm |
| Overall (W × H × D) | 1,271 × 774 × 87 mm | 1,488 × 897 × 88 mm | 1,709 × 1,020 × 88 mm | 1,957 × 1,160 × 100 mm |
| VESA mount | 400 × 200 | 600 × 400 | 800 × 400 | 800 × 600 |

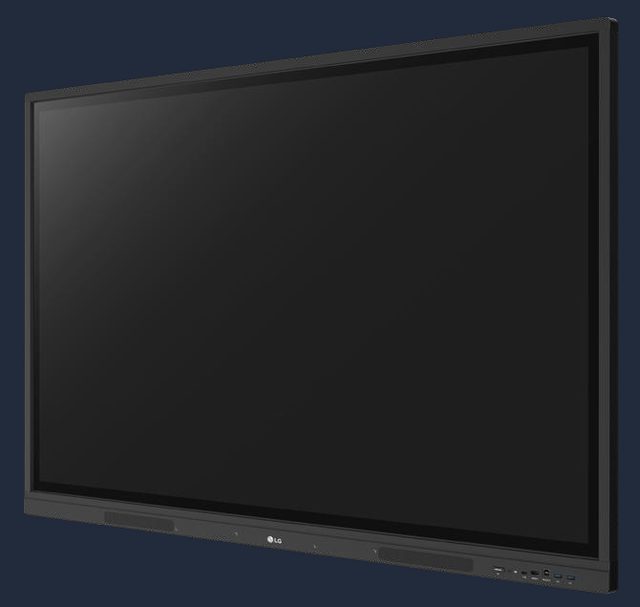

LG CreateBoard TR3DK — 55, 65, 75 and 86 inch.Product image: LG Electronics — LG CreateBoard TR3DK Series datasheet

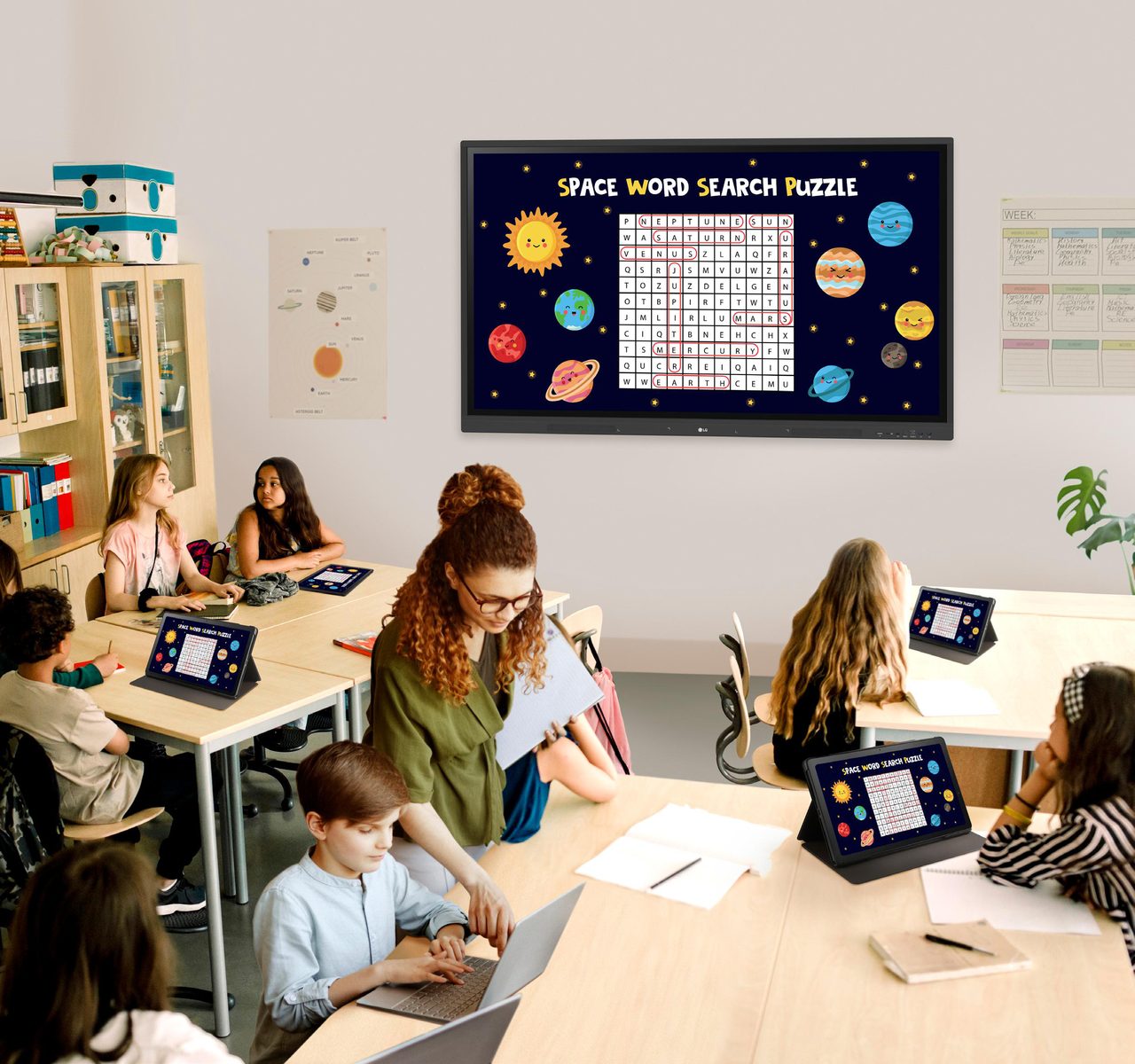

LG CreateBoard in a classroom, from LG's datasheet.Manufacturer visualization: LG Electronics — LG CreateBoard TR3DK Series datasheet

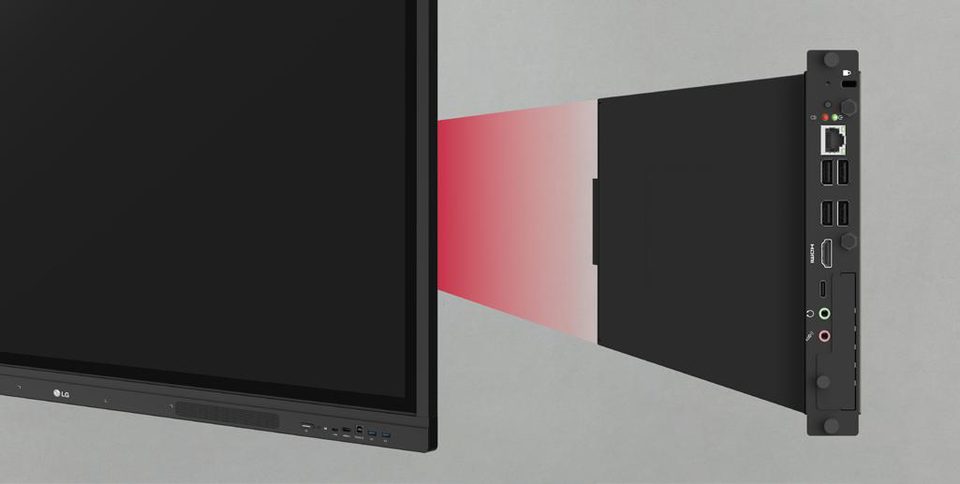

Both ranges take a slot-in OPS Windows PC rather than an external desktop.Product image: LG Electronics — LG CreateBoard TR3DK Series datasheet
QR sign-in: a teacher reaches their Drive or OneDrive without typing a password on a shared screen.Manufacturer visualization: LG Electronics — LG CreateBoard TR3DK Series datasheet
Which size for which room
| Size | Room | Rule of thumb |
|---|---|---|
| 55" | Huddle rooms, staff rooms, small labs | Only where 65 will not fit — text gets hard past the fifth row |
| 65" | Classrooms to about 40 students | Readable to roughly 8 m — most school classrooms |
| 75" | Large classrooms, training halls | The most common choice for coaching institutes |
| 86" | Auditoriums, boardrooms | Only worth it when the last row is past 10 m |
What to check before buying — any brand
- Touch points that hold up in use: 20 true simultaneous writers is plenty; 40 is headroom
- Android alone, or a slot-in Windows PC module — decide by the software your teachers or team already use
- Anti-glare glass, not glossy: a window behind the class makes a glossy panel unusable
- On-site warranty terms in writing — a classroom panel that leaves for repair is a classroom offline
- Who installs and who trains: a panel nobody was shown how to use becomes a very expensive whiteboard
What it costs
Quoted per unit against size and configuration rather than from a per-square-foot rate. In the current Indian market, entry 65-inch panels start under ₹1 lakh and feature-heavy 86-inch corporate configurations run well past ₹2 lakh — where a specific model lands depends on touch spec, the Windows module, and the service terms behind it. Send us the room size and how it will be used, and we will quote a configuration with the mount, installation and training included.
Specification
- Ranges
- LG CreateBoard TR3DK and LOGIC INFINITY AX Series
- Sizes
- 55", 65", 75" and 86" — 4K UHD on every size
- Touch
- Up to 40-point infrared — several people write at once
- Writing
- Dual-tip stylus or finger, anti-glare glass
- System
- Whiteboard software built in; Windows via a slot-in OPS PC
- Sharing
- Screen share from laptops and phones, HDMI, USB-C, LAN
- Mounting
- Wall mount or mobile trolley stand
Common sizes
- 4 × 2.2 ft (8.8 sq ft)55" — huddle rooms and staff rooms
- 4.7 × 2.6 ft (12.22 sq ft)65" — classrooms to about 40 students
- 5.4 × 3 ft (16.2 sq ft)75" — large classrooms and training halls
- 6.2 × 3.5 ft (21.7 sq ft)86" — auditoriums and boardrooms
Made to size — these are the sizes people most often order, not a fixed range.
Common questions
What does an interactive display board cost in India?
Entry 65-inch panels start under ₹1 lakh in the current market; 75-inch classroom configurations typically land between ₹1.2 and ₹1.8 lakh, and large or Windows-equipped corporate panels go higher. We quote per unit with the mount, installation and training included, after understanding the room.
Interactive panel or projector for a classroom?
For a standard classroom, the panel: brighter in daylight, no lamp costs, and writing that keeps up with a teacher. A projector still makes sense where you need an image larger than about 120 inches, such as a hall or auditorium.
Android only, or with Windows?
Android built in covers teaching apps, browsing and whiteboarding. Add the slot-in Windows module when your institution runs Windows-only software — ERP clients, specific exam or CAD tools. It can be added later, so you are not locked in on day one.
Which makes do you supply?
LG CreateBoard (TR3DK series, 55 to 86 inch) and LOGIC INFINITY (AX series, 65 to 86 inch). Both are 4K with up to 40-point touch and both take a slot-in Windows PC module, so most rooms can be quoted either way; we quote the configuration that suits the room rather than pushing one badge.
LG CreateBoard or LOGIC INFINITY — which should I choose?
Choose LG if you need a 55-inch size, if IT wants to manage a fleet of boards remotely, or if the room is shared and you want screen lock, USB lock and scheduled file deletion. Choose INFINITY if built-in sound matters — it carries 2 × 16 W front speakers — or if you want the Windows module specified up front as a Core i5 with 8 GB and a 256 GB SSD. Picture quality is not the deciding factor; both are 4K panels.
Is the board Wi-Fi ready out of the box?
Both connect by wired LAN as standard. On the INFINITY range Wi-Fi comes from an optional wireless module, so say if the room has no network point and we will include it. LG supports wireless screen sharing from phones and laptops on the same network, and Bluetooth for a keyboard, mouse or speaker.
Tell us the size and where it goes
Free site assessment, a written quote, and an honest opinion on whether you need what you think you need.
